GLASS-GLASS MODULES2018-09-24T14:56:13+00:00

PVT MODULES

ENERGY CHARGED
& EFFICIENT

GLASS-GLASS MODULES

FEATURES

• High power module with an output of up to 360 W
• 60 or 72 cells
• Robust construction
• 3.0 mm tempered anti-reflective solar glass
• Resistant against salt, ammonia, dust and other serious environmental influences
• Maximum resistance to fire, as there is no back film
• Roof-integrated
• Self-cleaning

Technical Data – Standard size


MODULE OUTPUT 250-310 Wp
FRONT 3,2-4,0 mm Anti-reflective solar glass
BACK Glass

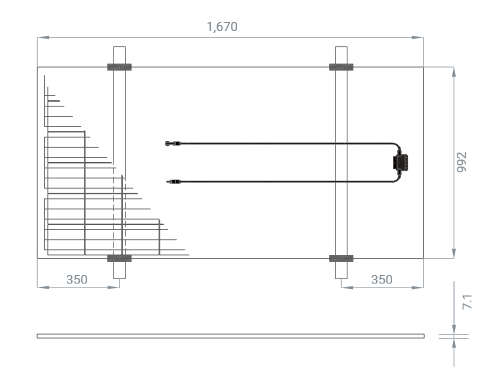

SIZE 1.645 x 986 x 7,1 mm
WEIGHT 27 kg
FRAME optionally with or without frame
OUTPUT TOLERANCE +5% / -0%
CERTIFICATES IEC 61215, IEC 61730
COMPRESSION STRENGTH 8000 Pa

DOWNLOAD DATA SHEETS [PDF]

GLASS/GLASS MONOCRYSTALLINE

PVT SOLID PRO M.60 300
60 cell module

GLASS/GLASS MONOCRYSTALLINE

PVT SOLID PRO M.72 340
72 cell module

GLASS/GLASS MONOCRYSTALLINE

PVT SOLID SOLRIF® M60. 300
60 cell module

Partner SOLITEK

For more than 20 years, SOLITEK has successfully been combining highest innovation in the optical industry with the continuously rising demands of the solar industry. In connection with SOLITEK, PVT is creating an energy bundle in many European states and even beyond…

Areas of application

These modules are suited both for roof systems as well as for open spaces. The high compression strength withstands all the demands and exterior influences.

Custom Solutions

We transform your façade into a work of art by using individual modules.
